containers，inside std::deque
继续 container ~ 来到 inlcude/bits/stl_deque.h 假设我们对 deque 的内存布局一无所知，然后来看代码看看能不能看出蛛丝马迹。
/**
* @brief This function controls the size of memory nodes.
* @param __size The size of an element.
* @return The number (not byte size) of elements per node.
*
* This function started off as a compiler kludge from SGI, but
* seems to be a useful wrapper around a repeated constant
* expression. The @b 512 is tunable (and no other code needs to
* change), but no investigation has been done since inheriting the
* SGI code. Touch _GLIBCXX_DEQUE_BUF_SIZE only if you know what
* you are doing, however: changing it breaks the binary
* compatibility!!
*/
#ifndef _GLIBCXX_DEQUE_BUF_SIZE
#define _GLIBCXX_DEQUE_BUF_SIZE 512
#endif
inline size_t
__deque_buf_size(size_t __size)
{ return (__size < _GLIBCXX_DEQUE_BUF_SIZE
? size_t(_GLIBCXX_DEQUE_BUF_SIZE / __size) : size_t(1)); }
默认情况下一个 node 是 512 byte。 deque 是由多个 node 组成的？
继续往下看，是 deque iterator。
/**
* @brief A deque::iterator.
*
* Quite a bit of intelligence here. Much of the functionality of
* deque is actually passed off to this class. A deque holds two
* of these internally, marking its valid range. Access to
* elements is done as offsets of either of those two, relying on
* operator overloading in this class.
*
* All the functions are op overloads except for _M_set_node.
*/
template<typename _Tp, typename _Ref, typename _Ptr>
struct _Deque_iterator
很奇怪的是，这里要三个模板参数。
typedef _Deque_iterator<_Tp, _Tp&, _Tp*> iterator;
typedef _Deque_iterator<_Tp, const _Tp&, const _Tp*> const_iterator;
static size_t _S_buffer_size() _GLIBCXX_NOEXCEPT
{ return __deque_buf_size(sizeof(_Tp)); }
typedef std::random_access_iterator_tag iterator_category;
typedef _Tp value_type;
typedef _Ptr pointer;
typedef _Ref reference;
typedef size_t size_type;
typedef ptrdiff_t difference_type;
typedef _Tp** _Map_pointer;
typedef _Deque_iterator _Self;
pointer 和 reference 是用模板参数来定义的，哦，可能外面是吧 deque 的 allocator 拿出来的 pointer 类型再给 iterator 可能是酱紫。ps, _S_buffer_size 可以加一个 constexpr。还有一个 _Map_pointer 不知道做什么的。
_Tp* _M_cur;
_Tp* _M_first;
_Tp* _M_last;
_Map_pointer _M_node;
_M_node 是 node 的指针，联想一下，deque 应该是由多块连续的内存区域组成（_Tp array），还有一个 _Tp* array 里面每个元素分别指向这些块，然后这个 _M_node 在这块区域上滑动表示当前位置。_M_cur 则是某个具体 _Tp array 上的位置。当然，到目前位置，这些都是 yy。
_Deque_iterator(_Tp* __x, _Map_pointer __y) _GLIBCXX_NOEXCEPT
: _M_cur(__x), _M_first(*__y),
_M_last(*__y + _S_buffer_size()), _M_node(__y) { }
_Deque_iterator() _GLIBCXX_NOEXCEPT
: _M_cur(0), _M_first(0), _M_last(0), _M_node(0) { }
_Deque_iterator(const iterator& __x) _GLIBCXX_NOEXCEPT
: _M_cur(__x._M_cur), _M_first(__x._M_first),
_M_last(__x._M_last), _M_node(__x._M_node) { }
构造没啥好看的，继续往下，又是各种 operator。哦还有之前遇到过的 _M_const_cast。
iterator
_M_const_cast() const _GLIBCXX_NOEXCEPT
{ return iterator(_M_cur, _M_node); }
重点来了
_Self&
operator++() _GLIBCXX_NOEXCEPT
{
++_M_cur;
if (_M_cur == _M_last)
{
_M_set_node(_M_node + 1);
_M_cur = _M_first;
}
return *this;
}
_Self
operator++(int) _GLIBCXX_NOEXCEPT
{
_Self __tmp = *this;
++*this;
return __tmp;
}
看来大概是之前 yy 的那个原理。如果到这个 node 的末尾了，就换到下一个 node，然后 cur 放到这个 node 的起始。 _M_first 是一段 _Tp 元素的第一个， _M_last 是一段 _Tp 元素最后一个的位置 + 1（也就是无效的那个位置，其实应该命名为 end）。
/**
* Prepares to traverse new_node. Sets everything except
* _M_cur, which should therefore be set by the caller
* immediately afterwards, based on _M_first and _M_last.
*/
void
_M_set_node(_Map_pointer __new_node) _GLIBCXX_NOEXCEPT
{
_M_node = __new_node;
_M_first = *__new_node;
_M_last = _M_first + difference_type(_S_buffer_size());
}
不过这里有一个问题，如果 _M_set_node 到头了呢？这里并没有做处理，难道是在外面。
_Self&
operator--() _GLIBCXX_NOEXCEPT
{
if (_M_cur == _M_first)
{
_M_set_node(_M_node - 1);
_M_cur = _M_last;
}
--_M_cur;
return *this;
}
_Self
operator--(int) _GLIBCXX_NOEXCEPT
{
_Self __tmp = *this;
--*this;
return __tmp;
}
operator– 也是，万一到了尽头？
_Self&
operator+=(difference_type __n) _GLIBCXX_NOEXCEPT
{
const difference_type __offset = __n + (_M_cur - _M_first);
if (__offset >= 0 && __offset < difference_type(_S_buffer_size()))
_M_cur += __n;
else
{
const difference_type __node_offset =
__offset > 0 ? __offset / difference_type(_S_buffer_size())
: -difference_type((-__offset - 1)
/ _S_buffer_size()) - 1;
_M_set_node(_M_node + __node_offset);
_M_cur = _M_first + (__offset - __node_offset
* difference_type(_S_buffer_size()));
}
return *this;
}
_Self
operator+(difference_type __n) const _GLIBCXX_NOEXCEPT
{
_Self __tmp = *this;
return __tmp += __n;
}
如果 += __n 不超过这个 buf，则直接前移，如果超过了，就除一下看有多少个。这段代码写的非常简洁~
const difference_type __node_offset =
__offset > 0 ? __offset / difference_type(_S_buffer_size())
: -difference_type((-__offset - 1)
/ _S_buffer_size()) - 1;
_M_set_node(_M_node + __node_offset);
_M_cur = _M_first + (__offset - __node_offset
* difference_type(_S_buffer_size()));
注意这句喔 -difference_type((-__offset - 1) / _S_buffer_size()) - 1; 后面的 operator+ operator- operator-= 都是根据之前的 operator 定义的~。就不一一说明
后面还有各种比较 operator，还有 + - 什么的
template<typename _Tp, typename _Ref, typename _Ptr>
inline typename _Deque_iterator<_Tp, _Ref, _Ptr>::difference_type
operator-(const _Deque_iterator<_Tp, _Ref, _Ptr>& __x,
const _Deque_iterator<_Tp, _Ref, _Ptr>& __y) _GLIBCXX_NOEXCEPT
{
return typename _Deque_iterator<_Tp, _Ref, _Ptr>::difference_type
(_Deque_iterator<_Tp, _Ref, _Ptr>::_S_buffer_size())
* (__x._M_node - __y._M_node - 1) + (__x._M_cur - __x._M_first)
+ (__y._M_last - __y._M_cur);
}
template<typename _Tp, typename _RefL, typename _PtrL,
typename _RefR, typename _PtrR>
inline typename _Deque_iterator<_Tp, _RefL, _PtrL>::difference_type
operator-(const _Deque_iterator<_Tp, _RefL, _PtrL>& __x,
const _Deque_iterator<_Tp, _RefR, _PtrR>& __y) _GLIBCXX_NOEXCEPT
{
return typename _Deque_iterator<_Tp, _RefL, _PtrL>::difference_type
(_Deque_iterator<_Tp, _RefL, _PtrL>::_S_buffer_size())
* (__x._M_node - __y._M_node - 1) + (__x._M_cur - __x._M_first)
+ (__y._M_last - __y._M_cur);
}
template<typename _Tp, typename _Ref, typename _Ptr>
inline _Deque_iterator<_Tp, _Ref, _Ptr>
operator+(ptrdiff_t __n, const _Deque_iterator<_Tp, _Ref, _Ptr>& __x)
_GLIBCXX_NOEXCEPT
{ return __x + __n; }
都是一眼都能看懂的~
注意到下面还有一堆的 copy, fill ,copy_backward, move, move_backward 的重载。暂且不看，具体的实现都在 deque.tcc 里面。
接下来是 _Deque_base，目测和 _Vector_base 一个套路，只负责内存的分配。
class _Deque_base
{
public:
typedef _Alloc allocator_type;
allocator_type
get_allocator() const _GLIBCXX_NOEXCEPT
{ return allocator_type(_M_get_Tp_allocator()); }
typedef _Deque_iterator<_Tp, _Tp&, _Tp*> iterator;
typedef _Deque_iterator<_Tp, const _Tp&, const _Tp*> const_iterator;
_Deque_base()
: _M_impl()
{ _M_initialize_map(0); }
_Deque_base(size_t __num_elements)
: _M_impl()
{ _M_initialize_map(__num_elements); }
_Deque_base(const allocator_type& __a, size_t __num_elements)
: _M_impl(__a)
{ _M_initialize_map(__num_elements); }
_Deque_base(const allocator_type& __a)
: _M_impl(__a)
{ }
#if __cplusplus >= 201103L
_Deque_base(_Deque_base&& __x)
: _M_impl(std::move(__x._M_get_Tp_allocator()))
{
_M_initialize_map(0);
if (__x._M_impl._M_map)
{
std::swap(this->_M_impl._M_start, __x._M_impl._M_start);
std::swap(this->_M_impl._M_finish, __x._M_impl._M_finish);
std::swap(this->_M_impl._M_map, __x._M_impl._M_map);
std::swap(this->_M_impl._M_map_size, __x._M_impl._M_map_size);
}
}
#endif
这里还是用了一个 _M_impl 成员，目测又继承了 allocator。_M_impl 里面有几个关键的成员，_M_start, _M_finish, _M_map, M_map_size。
struct _Deque_impl
: public _Tp_alloc_type
{
_Tp** _M_map;
size_t _M_map_size;
iterator _M_start;
iterator _M_finish;
_M_map 应该就是那段储存各个 node 地址的地方，_M_start, _M_finish 应该分别是 deque 的 start 和 finish。
protected:
typedef typename _Alloc::template rebind<_Tp*>::other _Map_alloc_type;
typedef typename _Alloc::template rebind<_Tp>::other _Tp_alloc_type;
在 _Deque_impl 中，为了分配 map，要得到一个 rebind 到 _Tp* 的 allocator。
来看 _M_initialize_map， _M_map 是怎么做初始化的。
template<typename _Tp, typename _Alloc>
void
_Deque_base<_Tp, _Alloc>::
_M_initialize_map(size_t __num_elements)
{
const size_t __num_nodes = (__num_elements/ __deque_buf_size(sizeof(_Tp))
+ 1);
this->_M_impl._M_map_size = std::max((size_t) _S_initial_map_size,
size_t(__num_nodes + 2));
this->_M_impl._M_map = _M_allocate_map(this->_M_impl._M_map_size);
// For "small" maps (needing less than _M_map_size nodes), allocation
// starts in the middle elements and grows outwards. So nstart may be
// the beginning of _M_map, but for small maps it may be as far in as
// _M_map+3.
_Tp** __nstart = (this->_M_impl._M_map
+ (this->_M_impl._M_map_size - __num_nodes) / 2);
_Tp** __nfinish = __nstart + __num_nodes;
__try
{ _M_create_nodes(__nstart, __nfinish); }
__catch(...)
{
_M_deallocate_map(this->_M_impl._M_map, this->_M_impl._M_map_size);
this->_M_impl._M_map = 0;
this->_M_impl._M_map_size = 0;
__throw_exception_again;
}
this->_M_impl._M_start._M_set_node(__nstart);
this->_M_impl._M_finish._M_set_node(__nfinish - 1);
this->_M_impl._M_start._M_cur = _M_impl._M_start._M_first;
this->_M_impl._M_finish._M_cur = (this->_M_impl._M_finish._M_first
+ __num_elements
% __deque_buf_size(sizeof(_Tp)));
如果传进来的是 0 的话，则 _M_map_size 就是 enum { _S_initial_map_size = 8 }; ，__nstart 被设成 中间的那个 node，__nfinish 则是 (M_map_size + __num_nodes) / 2 的位置（根据之前的 max 这个位置肯定是有效的）。接着在这个范围上 create nodes。如果成功的话，_M_start 就会被 set 成这个 __nstart，而 __M_finish 则会被 set 成 __nfinish - 1（注意 __nfinish - __nstart == __num_nodes）。现在 __M_start 和 _M_finish 之间有 __deque_buf_size * (__num_nodes - 1) 个元素，而 __num_nodes = (__num_elements/ __deque_buf_size+ 1);。如果现在把 _M_start._M_cur 设成 _M_start._M_first ，向后推 __num_elements 得到 _M_finish 所在的 node，再加上 __num_elements % __deque_buf_size，就是 _M_finish._M_cur 应该所在的位置~~~ 这就这段代码的含义。

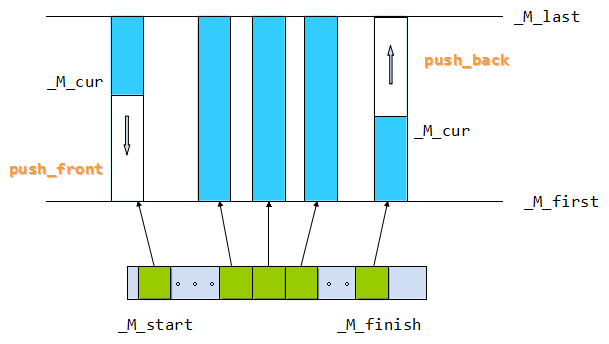

来一张 deque 的直观图吧～。
顺便过一下 allocate 和 deallocate，不过大概都 yy 的到~~
_Tp**
_M_allocate_map(size_t __n)
{ return _M_get_map_allocator().allocate(__n); }
void
_M_deallocate_map(_Tp** __p, size_t __n) _GLIBCXX_NOEXCEPT
{ _M_get_map_allocator().deallocate(__p, __n); }
_M_create_nodes 应该就是在 map 上对每个 node 分配内存吧
template<typename _Tp, typename _Alloc>
void
_Deque_base<_Tp, _Alloc>::
_M_create_nodes(_Tp** __nstart, _Tp** __nfinish)
{
_Tp** __cur;
__try
{
for (__cur = __nstart; __cur < __nfinish; ++__cur)
*__cur = this->_M_allocate_node();
}
__catch(...)
{
_M_destroy_nodes(__nstart, __cur);
__throw_exception_again;
}
}
template<typename _Tp, typename _Alloc>
void
_Deque_base<_Tp, _Alloc>::
_M_destroy_nodes(_Tp** __nstart, _Tp** __nfinish) _GLIBCXX_NOEXCEPT
{
for (_Tp** __n = __nstart; __n < __nfinish; ++__n)
_M_deallocate_node(*__n);
}
这个错误处理做的好疼~~~ 。
接下来就是 deque 的正文了
template<typename _Tp, typename _Alloc = std::allocator<_Tp> >
class deque : protected _Deque_base<_Tp, _Alloc>
大多的 ctor 都不用看，猜都猜的到，
explicit
deque(size_type __n)
: _Base(__n)
{ _M_default_initialize(); }
来看 default_init
#if __cplusplus >= 201103L
template <typename _Tp, typename _Alloc>
void
deque<_Tp, _Alloc>::
_M_default_initialize()
{
_Map_pointer __cur;
__try
{
for (__cur = this->_M_impl._M_start._M_node;
__cur < this->_M_impl._M_finish._M_node;
++__cur)
std::__uninitialized_default_a(*__cur, *__cur + _S_buffer_size(),
_M_get_Tp_allocator());
std::__uninitialized_default_a(this->_M_impl._M_finish._M_first,
this->_M_impl._M_finish._M_cur,
_M_get_Tp_allocator());
}
__catch(...)
{
std::_Destroy(this->_M_impl._M_start, iterator(*__cur, __cur),
_M_get_Tp_allocator());
__throw_exception_again;
}
}
#endif
跟 vector 的道理都一样，尽量不想去调你的构造函数~~。下面的 fill 也是同理
template <typename _Tp, typename _Alloc>
void
deque<_Tp, _Alloc>::
_M_fill_initialize(const value_type& __value)
{
_Map_pointer __cur;
__try
{
for (__cur = this->_M_impl._M_start._M_node;
__cur < this->_M_impl._M_finish._M_node;
++__cur)
std::__uninitialized_fill_a(*__cur, *__cur + _S_buffer_size(),
__value, _M_get_Tp_allocator());
std::__uninitialized_fill_a(this->_M_impl._M_finish._M_first,
this->_M_impl._M_finish._M_cur,
__value, _M_get_Tp_allocator());
}
__catch(...)
{
std::_Destroy(this->_M_impl._M_start, iterator(*__cur, __cur),
_M_get_Tp_allocator());
__throw_exception_again;
}
}
析构基本也是同理。其他很多东西跟 vector， string 里面的都差不多。我比较关心 deque 什么时候会增长，以多大的幅度增长。
void
push_back(const value_type& __x)
{
if (this->_M_impl._M_finish._M_cur
!= this->_M_impl._M_finish._M_last - 1)
{
this->_M_impl.construct(this->_M_impl._M_finish._M_cur, __x);
++this->_M_impl._M_finish._M_cur;
}
else
_M_push_back_aux(__x);
}
如果到达了这个 node 最后一个位置的话，就会 call 到下面。
// Called only if _M_impl._M_finish._M_cur == _M_impl._M_finish._M_last - 1.
template<typename _Tp, typename _Alloc>
template<typename... _Args>
void
deque<_Tp, _Alloc>::
_M_push_back_aux(_Args&&... __args)
{
_M_reserve_map_at_back();
*(this->_M_impl._M_finish._M_node + 1) = this->_M_allocate_node();
__try
{
this->_M_impl.construct(this->_M_impl._M_finish._M_cur,
std::forward<_Args>(__args)...);
this->_M_impl._M_finish._M_set_node(this->_M_impl._M_finish._M_node
+ 1);
this->_M_impl._M_finish._M_cur = this->_M_impl._M_finish._M_first;
}
__catch(...)
{
_M_deallocate_node(*(this->_M_impl._M_finish._M_node + 1));
__throw_exception_again;
}
}
_M_reserve_map_at_back 之后进行了 _M_allocate_node，关键在 _M_reserve_map_at_back 里面
void
_M_reserve_map_at_back(size_type __nodes_to_add = 1)
{
if (__nodes_to_add + 1 > this->_M_impl._M_map_size
- (this->_M_impl._M_finish._M_node - this->_M_impl._M_map))
_M_reallocate_map(__nodes_to_add, false);
}
如果 map 真的到头的话，就 reallocate map，相应的后面也有 front 的处理
void
_M_reserve_map_at_front(size_type __nodes_to_add = 1)
{
if (__nodes_to_add > size_type(this->_M_impl._M_start._M_node
- this->_M_impl._M_map))
_M_reallocate_map(__nodes_to_add, true);
}
来看一下 _M_reallocate_map 是怎么做的吧
template <typename _Tp, typename _Alloc>
void
deque<_Tp, _Alloc>::
_M_reallocate_map(size_type __nodes_to_add, bool __add_at_front)
{
const size_type __old_num_nodes
= this->_M_impl._M_finish._M_node - this->_M_impl._M_start._M_node + 1;
const size_type __new_num_nodes = __old_num_nodes + __nodes_to_add;
_Map_pointer __new_nstart;
if (this->_M_impl._M_map_size > 2 * __new_num_nodes)
{
__new_nstart = this->_M_impl._M_map + (this->_M_impl._M_map_size
- __new_num_nodes) / 2
+ (__add_at_front ? __nodes_to_add : 0);
if (__new_nstart < this->_M_impl._M_start._M_node)
std::copy(this->_M_impl._M_start._M_node,
this->_M_impl._M_finish._M_node + 1,
__new_nstart);
else
std::copy_backward(this->_M_impl._M_start._M_node,
this->_M_impl._M_finish._M_node + 1,
__new_nstart + __old_num_nodes);
}
else
目测还是按两倍来的呢~ 如果当前的 size > new_num_nodes，则会吧 start 重新定位到 _M_map_size - __new_num_nodes) / 2 的位置上，如果是 add_to_front 再往前移 __nodes_to_add 个坑。接着就是 copy 了，注意这里是有 overlap 了，所以做判断用 copy 还是 copy_backward。
而如果当前 size < new_num_nodes，则会按照近乎两倍的大小进行分配，设置 new_start 的方法跟之前大概相似。
说到这里，deque 会自己 shrink 么？我们来看 pop。
void
pop_front() _GLIBCXX_NOEXCEPT
{
if (this->_M_impl._M_start._M_cur
!= this->_M_impl._M_start._M_last - 1)
{
this->_M_impl.destroy(this->_M_impl._M_start._M_cur);
++this->_M_impl._M_start._M_cur;
}
else
_M_pop_front_aux();
}
template <typename _Tp, typename _Alloc>
void deque<_Tp, _Alloc>::
_M_pop_front_aux()
{
this->_M_impl.destroy(this->_M_impl._M_start._M_cur);
_M_deallocate_node(this->_M_impl._M_start._M_first);
this->_M_impl._M_start._M_set_node(this->_M_impl._M_start._M_node + 1);
this->_M_impl._M_start._M_cur = this->_M_impl._M_start._M_first;
}
如果 _M_cur == _M_last - 1，也就是 pop 到了这个 node 的尾巴，就会 deallocate 掉然后换下一个 node。 大概的原理都清楚了，那我们随意的往下看好了~
#if __cplusplus >= 201103L
template<typename _InputIterator,
typename = std::_RequireInputIter<_InputIterator>>
void
assign(_InputIterator __first, _InputIterator __last)
{ _M_assign_dispatch(__first, __last, __false_type()); }
#else
template<typename _InputIterator>
void
assign(_InputIterator __first, _InputIterator __last)
{
typedef typename std::__is_integer<_InputIterator>::__type _Integral;
_M_assign_dispatch(__first, __last, _Integral());
}
#endif
然后是 dispatch
template<typename _Integer>
void
_M_assign_dispatch(_Integer __n, _Integer __val, __true_type)
{ _M_fill_assign(__n, __val); }
// called by the range assign to implement [23.1.1]/9
template<typename _InputIterator>
void
_M_assign_dispatch(_InputIterator __first, _InputIterator __last,
__false_type)
{
typedef typename std::iterator_traits<_InputIterator>::
iterator_category _IterCategory;
_M_assign_aux(__first, __last, _IterCategory());
}
void
_M_fill_assign(size_type __n, const value_type& __val)
{
if (__n > size())
{
std::fill(begin(), end(), __val);
insert(end(), __n - size(), __val);
}
else
{
_M_erase_at_end(begin() + difference_type(__n));
std::fill(begin(), end(), __val);
}
}
_M_fill_assign 会直接去调 std fill，不够的后面都 insert，而如果多余的话就 _M_erase_at_end。
void
_M_erase_at_end(iterator __pos)
{
_M_destroy_data(__pos, end(), _M_get_Tp_allocator());
_M_destroy_nodes(__pos._M_node + 1,
this->_M_impl._M_finish._M_node + 1);
this->_M_impl._M_finish = __pos;
}
_M_assign_aux 也是类似的原理
template <typename _Tp, class _Alloc>
template <typename _InputIterator>
void
deque<_Tp, _Alloc>::
_M_assign_aux(_InputIterator __first, _InputIterator __last,
std::input_iterator_tag)
{
iterator __cur = begin();
for (; __first != __last && __cur != end(); ++__cur, ++__first)
*__cur = *__first;
if (__first == __last)
_M_erase_at_end(__cur);
else
insert(end(), __first, __last);
}
换个心情看看小函数，比如说 operator[]，其实直接拿 iterator 来做就好了。
reference
operator[](size_type __n) _GLIBCXX_NOEXCEPT
{ return this->_M_impl._M_start[difference_type(__n)]; }
再比如说 shrink_to_fit
void
shrink_to_fit() noexcept
{ _M_shrink_to_fit(); }
template <typename _Tp, typename _Alloc>
bool
deque<_Tp, _Alloc>::
_M_shrink_to_fit()
{
const difference_type __front_capacity
= (this->_M_impl._M_start._M_cur - this->_M_impl._M_start._M_first);
if (__front_capacity == 0)
return false;
const difference_type __back_capacity
= (this->_M_impl._M_finish._M_last - this->_M_impl._M_finish._M_cur);
if (__front_capacity + __back_capacity < _S_buffer_size())
return false;
return std::__shrink_to_fit_aux<deque>::_S_do_it(*this);
}
之前看过，其实里面就是用 swap 的那个方法。如果 front_capacity == 0 或者 back_capacity + front_capacity 还不到一个 buffer size 的时候是不会 swap 的~。
再看 resize
void
resize(size_type __new_size, const value_type& __x)
{
const size_type __len = size();
if (__new_size > __len)
insert(this->_M_impl._M_finish, __new_size - __len, __x);
else if (__new_size < __len)
_M_erase_at_end(this->_M_impl._M_start
+ difference_type(__new_size));
}
没什么新内容，insert 一直没看。insert 有好几个重载，一个一个来。
iterator
insert(const_iterator __position, value_type&& __x)
{ return emplace(__position, std::move(__x)); }
template<typename _Tp, typename _Alloc>
template<typename... _Args>
typename deque<_Tp, _Alloc>::iterator
deque<_Tp, _Alloc>::
emplace(const_iterator __position, _Args&&... __args)
{
if (__position._M_cur == this->_M_impl._M_start._M_cur)
{
emplace_front(std::forward<_Args>(__args)...);
return this->_M_impl._M_start;
}
else if (__position._M_cur == this->_M_impl._M_finish._M_cur)
{
emplace_back(std::forward<_Args>(__args)...);
iterator __tmp = this->_M_impl._M_finish;
--__tmp;
return __tmp;
}
else
return _M_insert_aux(__position._M_const_cast(),
std::forward<_Args>(__args)...);
}
对 front 和 back 两种情况作了特殊处理，不过如果不是这两种情况，就疼了吧
template<typename... _Args>
typename deque<_Tp, _Alloc>::iterator
deque<_Tp, _Alloc>::
_M_insert_aux(iterator __pos, _Args&&... __args)
{
value_type __x_copy(std::forward<_Args>(__args)...); // XXX copy
difference_type __index = __pos - this->_M_impl._M_start;
if (static_cast<size_type>(__index) < size() / 2)
{
push_front(_GLIBCXX_MOVE(front()));
iterator __front1 = this->_M_impl._M_start;
++__front1;
iterator __front2 = __front1;
++__front2;
__pos = this->_M_impl._M_start + __index;
iterator __pos1 = __pos;
++__pos1;
_GLIBCXX_MOVE3(__front2, __pos1, __front1);
}
else
{
push_back(_GLIBCXX_MOVE(back()));
iterator __back1 = this->_M_impl._M_finish;
--__back1;
iterator __back2 = __back1;
--__back2;
__pos = this->_M_impl._M_start + __index;
_GLIBCXX_MOVE_BACKWARD3(__pos, __back2, __back1);
}
*__pos = _GLIBCXX_MOVE(__x_copy);
return __pos;
}
看起来非常蛋疼。。。分别根据位置，选择 move 前半段还是后半段。最后调了 std::move。（这里省去了 __cplusplus 的宏）。类似的，可以联想 insert n 个情况，insert range 和 erase 的实现。
= = 这种代码真的太容易看腻了。不过都是非常好的练习。
顺便，之前有一些全局的重载没有看，顺路观赏一下。
template<typename _Tp>
_Deque_iterator<_Tp, _Tp&, _Tp*>
copy(_Deque_iterator<_Tp, const _Tp&, const _Tp*> __first,
_Deque_iterator<_Tp, const _Tp&, const _Tp*> __last,
_Deque_iterator<_Tp, _Tp&, _Tp*> __result)
{
typedef typename _Deque_iterator<_Tp, _Tp&, _Tp*>::_Self _Self;
typedef typename _Self::difference_type difference_type;
difference_type __len = __last - __first;
while (__len > 0)
{
const difference_type __clen
= std::min(__len, std::min(__first._M_last - __first._M_cur,
__result._M_last - __result._M_cur));
std::copy(__first._M_cur, __first._M_cur + __clen, __result._M_cur);
__first += __clen;
__result += __clen;
__len -= __clen;
}
return __result;
}
具体重载里面还是调用 std 里面的东西，不过里面就是具体的 _Tp* array copy 了。
比较麻烦的是 copy_backward
template<typename _Tp>
_Deque_iterator<_Tp, _Tp&, _Tp*>
copy_backward(_Deque_iterator<_Tp, const _Tp&, const _Tp*> __first,
_Deque_iterator<_Tp, const _Tp&, const _Tp*> __last,
_Deque_iterator<_Tp, _Tp&, _Tp*> __result)
{
typedef typename _Deque_iterator<_Tp, _Tp&, _Tp*>::_Self _Self;
typedef typename _Self::difference_type difference_type;
difference_type __len = __last - __first;
while (__len > 0)
{
difference_type __llen = __last._M_cur - __last._M_first;
_Tp* __lend = __last._M_cur;
difference_type __rlen = __result._M_cur - __result._M_first;
_Tp* __rend = __result._M_cur;
if (!__llen)
{
__llen = _Self::_S_buffer_size();
__lend = *(__last._M_node - 1) + __llen;
}
if (!__rlen)
{
__rlen = _Self::_S_buffer_size();
__rend = *(__result._M_node - 1) + __rlen;
}
const difference_type __clen = std::min(__len,
std::min(__llen, __rlen));
std::copy_backward(__lend - __clen, __lend, __rend);
__last -= __clen;
__result -= __clen;
__len -= __clen;
}
return __result;
}
deque 就烂到这里好了，大概原理基本都已经明了了~
总结一下~~
感觉 STL 里面数据结构实现是很好的基本练习啊~ 比如说实现 insert，怎样保证正确性，整洁以及效率。
> 本作品采用知识共享署名-非商业性使用-相同方式共享 4.0 国际许可协议进行许可。 <
